Electrical & new-energy enclosures.

Hybrid indoors and polyester outdoors, with steady supply of standard cabinet colours.

Main: Hybrid, PolyesterOption: Epoxy

Who this is for

Distribution boxes, control and switch cabinets, outdoor electrical boxes, instrument housings, inverter, battery storage and UPS housings.

Enclosures usually run in a few standard colours such as RAL 7035, so buyers value colour stability over large volumes, an even sand texture, and coverage on punched holes and folded edges. Indoor cabinets and instrument housings suit hybrid; outdoor cabinets suit polyester; indoor parts that need chemical resistance or electrical insulation can use epoxy.

Buyer problems

What usually goes wrong.

01
Colour and gloss drift between batches on standard colours.
02
Even sand texture that also hides marks.
03
Coverage and film on punched holes, folded edges and welds.
04
Weathering and corrosion of outdoor cabinets in heat, humidity and coastal air.
05
New-energy projects ask for documents and tests.

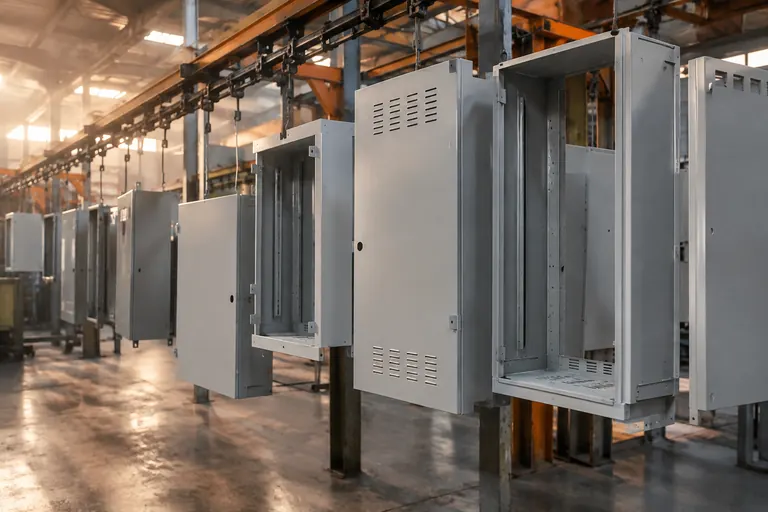

Electrical & new-energy enclosures parts on a powder coating line — **On the line.** Cabinet bodies and doors in a standard grey sand texture.

Recommended systems

By part and environment.

Based on our product catalogue. Suitability is confirmed on your part, film thickness, cure and specification.

Need / use	Recommended	Basis	How we start
Indoor distribution boxes, control cabinets, instrument housings	Hybrid, flat or sand texture	Good flow, resists yellowing; indoor; instrument housings listed in our catalogue	Standard colours kept as approved versions
Outdoor cabinets and electrical boxes	Polyester, flat or sand texture	Weathering, resistance to yellowing, edge coverage; outdoor	Evaluated against site exposure and your standard
Indoor parts needing chemical resistance or insulation	Epoxy	Chemical resistance and electrical insulation; indoor	Evaluated under your specified test conditions

What we bring

Capabilities you can use.

01
Steady supply of standard colours with approved panel versions.
02
In-house salt spray, adhesion and impact conditions.
03
ISO 9001 and ISO 14001 management systems.
04
Standard lead time within 10 days.

What is verified

Before bulk supply.

From need to bulk: needs → selection and colour → sample evaluation on your line → order confirmation → ongoing supply to the approved version.

Check	Focus
Batch colour	Colour difference and gloss on standard colours
Texture	Sand texture size and evenness
Coverage	Punched holes, folded edges and welds
Environment	Salt spray and humidity, to your requirements
Documents	Project requirements against the documents we can supply

Scope. These products are not flame-retardant or UL listed coatings; projects that require them are outside scope.

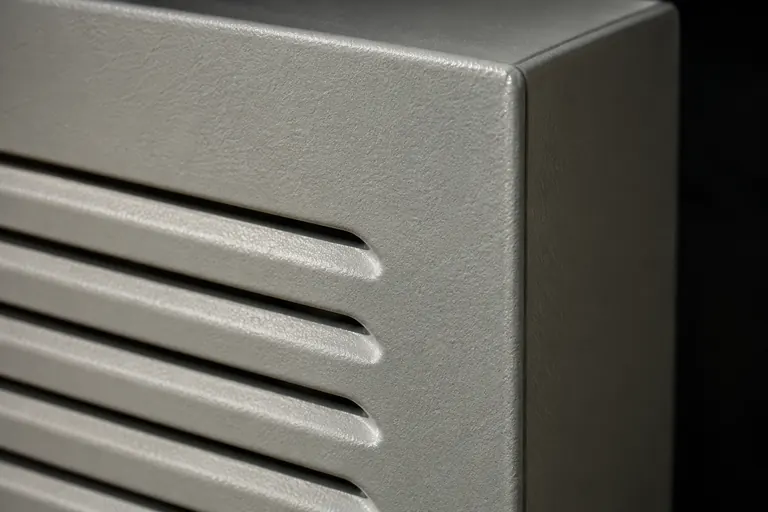

Electrical & new-energy enclosures coating close-up — **Louvres and corners.** Punched openings, folds and welds are checked for full coverage.

How to start

“For RAL 7035, 7032 and other cabinet colours, we can start with a batch comparison against your panel. Hybrid indoors, polyester outdoors, and epoxy where insulation or chemical resistance is needed.”

Start a project

Send us your most-used colour and your hardest one.

Tell us the part, environment, process and expected volume. We reply with a proposed system and a sample plan. Orders from 1,000 kg.

Request a sample Send project details
